ZTE F690L GPON FTTH wifi router onu CATV
৳ 2,700.00৳ 3,500.00 (-23%)
ZTE F690L GPON FTTH wifi router onu CATV

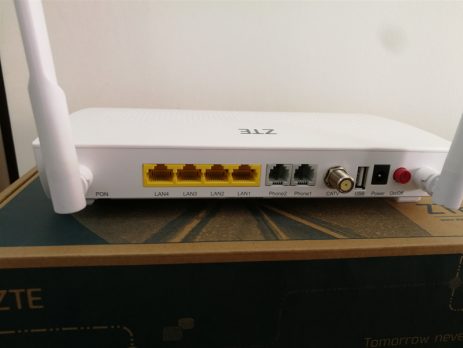

ZTE F690L GPON FTTH wifi router onu CATV is a GPON Optical Network Terminal designed for FTTH scenarios. This model offers 4 Ge Port 2 Voice Port WiFi CATV and 1 USB Port. The F690L features high-performance forwarding capabilities to ensure an excellent experience with VoIP, Internet, and HD video services.
ZTE F690L GPON FTTH wifi router onu CATV is a GPON Optical Network Terminal designed for FTTH scenarios. It provides subscribers rich, colorful, individualized, convenient, and comfortable triple-play services including voice, video (IPTV/CATV), and high-speed internet access. it supports desktop mounting, wall mounting, and network cabinet mounting. The ZXHN F690L complies with the ITU-T G.984 standard, provides 2.488 Gbps downlink and 1.244 Gbps uplink at the network side, and provides four GE ports, two POTS ports, one 802.11b/g/n(2*2 @2.4G Hz) Wi-Fi interface, one USB interface, and one RF interface at the user side. Home users can easily access voice services, video services, CATV service, and many other kinds of high-speed broadband services by the ZXHN F690L’s rich interfaces.
ZTE ZXHN F668 FTTH Product Specifications
| Brand | ZTE |
| Model | F690L |
| GPON Interface | 1x, SC/APC, 2,448 Gbit/s downstream 1,244 Gbit/s upstream |
| Other Interfaces | 4x 10/100/1000 Base-T, 2x POTS, WiFi (2,4 GHz, 802.11b/g/n, 2×2 MIMO, WPA/WPA2,WPS), USB (2.0, File Sharing, DLNA), CATV |
| Operation Modes | Bridge, Router, AP |
| Wavelength for downstream | 1480 nm – 1500 nm |
| Wavelength for upstream | 1290 nm – 1330 nm |
| Sensitivity | -28 dBm |
| Power Consumption | 7 W |
| Dimensions | 220 mm x 34 mm x 187 mm |
| Working temperature and humidity | 0°C – 40°C, 5% – 95% |
| Power | 12 V DC |
| GPON features | 8x T-CONT, 32 GEM portů |
| Support | VLAN (802.1Q, 802.1P, 802.1ad), Multicast, QoS, DHCP Server/Client, NAT, IPv6 Dual Stack |
| Management | Local (WEB), OMCI, TR069 |
ZTE F690L GPON FTTH wifi router onu CATV
ZTE F690L GPON FTTH wifi router onu CATV is a GPON Optical Network Terminal designed for FTTH scenarios. This model offers 4 Ge Port 2 Voice Port WiFi CATV and 1 USB Port. The F690L features high-performance forwarding capabilities to ensure an excellent experience with VoIP, Internet, and HD video services.
ZTE F690L GPON FTTH wifi router onu CATV is a GPON Optical Network Terminal designed for FTTH scenarios. It provides subscribers rich, colorful, individualized, convenient, and comfortable triple-play services including voice, video (IPTV/CATV), and high-speed internet access. it supports desktop mounting, wall mounting, and network cabinet mounting. The ZXHN F690L complies with the ITU-T G.984 standard, provides 2.488 Gbps downlink and 1.244 Gbps uplink at the network side, and provides four GE ports, two POTS ports, one 802.11b/g/n(2*2 @2.4G Hz) Wi-Fi interface, one USB interface, and one RF interface at the user side. Home users can easily access voice services, video services, CATV service, and many other kinds of high-speed broadband services by the ZXHN F690L’s rich interfaces.
