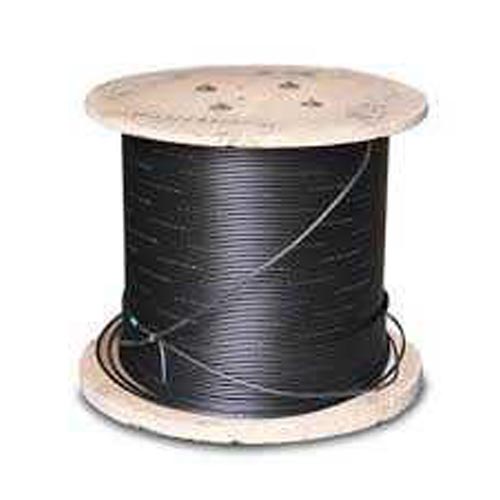

4 Core Fiber Optic Cable
4 Core Fiber Optic Cable
Description
BEST QUALITY 4 CORE FIBER OPTIC CABLE
Model: GYXTW-4B1,
Weight Per Km : 35 Kg
Outer dia : 6.2 mm,
Inner Loose Tube : 2.0 mm
SM4 Core (Colored),
2FRP Strengthen : 1 mm each
Tube Filling Compound : Hydrophobic Gel
Optical Fiber : G652D
Attenuation : 1310nm at 0:35 dB / km, 1550 at 0.20 dB/ Km৳ 13.00৳ 13.30 -
ABS Box type 1×16 plc optical splitter
ABS Box type 1×16 plc optical splitter
1.Description
1).Planar lightwave circuit (PLC) splitter is a type of optical power management device that is fabricated using silica optical waveguide technology.
2).It features small size, high reliability, wide operating wavelength range and good channel-to-channel uniformity, and is widely used in PON networks to realize optical signal power splitting.
3).Rollball provides whole series of 1xN and 2xN splitter products that are tailored for specific applications.
4).All products meet GR-1209-CORE and GR-1221-CORErequirements.
৳ 1,550.00৳ 1,600.00 -

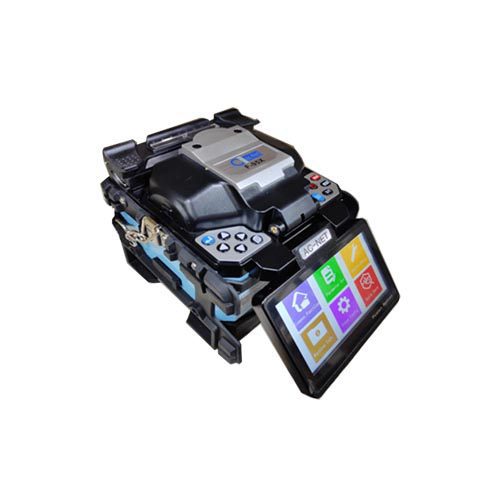

AC-Net F-95X Splicer Machine
AC-Net F-95X Splicer Machine Price in Bangladesh.
AC-Net F-95X optical fiber splicer machine has 100% true loss report display after splicing, supports FTTH and cable TV digital system, 7800 mAh battery provides 400 nos splicing, high performance and low maintenance, suitable for rough conditions in Bangladesh.
৳ 110,000.00৳ 115,000.00 -
AI 9 Fusion Splicer Machine
AI 9 fusion splicer
The AI-9 optical fiber fusion splicer uses the high-speed image process technology and special exact orientation technology, so that the whole process of fiber’s fusion can be finished in 10 seconds automatically.
By default, the device is configured in auto mode. In most cases, any adjustments of the default settings are not required. No calibration is required – it must be done only in case of problems with obtaining the correct splice. Available in the Google Play and AppStore application is required, for example, to change the default splicing program or calibration due to extremely changing environmental conditions.
৳ 110,000.00৳ 115,000.00 -

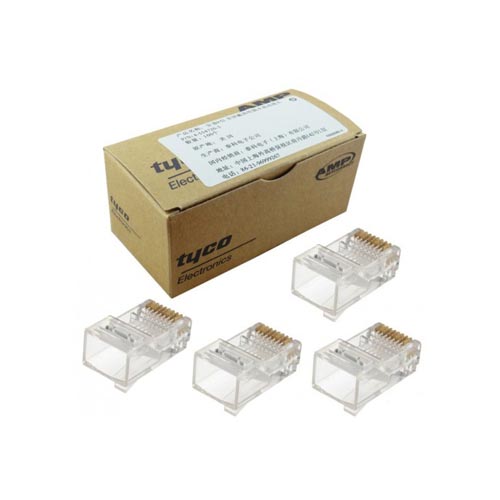

AMP RJ-45 Cat5 Connector
AMP RJ-45 Cat5 Connector
Plug Type RJ-45
Conductors 8
Connector RJ45 Female Connector
closure material PC
Connector type RJ45
Keywords Modular Jack Connector৳ 200.00৳ 225.00 -

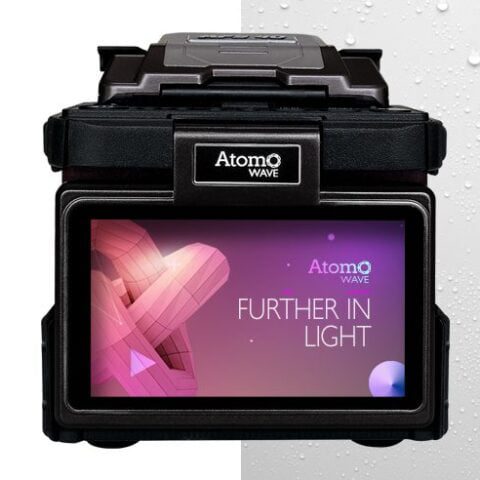

ATOMO AFS 40 SPLICER
ATOMO AFS 40 SPLICER
Features
- Stable low splicing loss spread (0.02dB +_ 0.02 G652)
- High-speed splicing and shrinking heater (8 Sec / 16 Sec)
- Full touch screen GUI
- Switchable SOC (Splice On Connector)
- platform (Holder, Heater).
- Durable battery power (over 220 times splicing and shrinking).
- Full cover LED working illumination.
- Auto compensation function for various environments.
For other related splicers please visit us at https://shop.tripleplaytechnologybd.com/product-category/internet/splicing-machine-internet/
৳ 135,000.00৳ 140,000.00 -
BDCOM 4PORT EPON OLT P3310D-2AC
BDCOM P3310C-2AC 4 Port OLT Price in Bangladesh.
BDCOM P3310B complies with IEEE802.3ah and P.R.C intercommunication standard, YD/T 1475-2006, supports CTC20/2.1, automatically discovers and cooperates with ONUs of different manufacturers.BDCOM P3310B OLT supports the symmetric uplink/downlink 1.25Gbps PON transmission rate, efficient bandwidth usage and Ethernet services, helping carriers to provide reliable services to their users.
Its coupling ratio, 1:64, and its support of different hybrid ONU networks minimize the carrier’s investment.
BDCOM P3310B, based on the edge-cutting technologies, is strong in functions. A few of its functions such as QoS guarantee, SLA and DBA can be easily listed out.
BDCOM P3310B can support four PON systems and has the following advantages:
EPON: P3310B supports IEEE802.3ah and PRC Community Industry Standard (YD/T 1475-2006). It adopts the point-to-multipoint network topology, effectively collects separate Ethernet services and aggregates them on the MAN node. It connects the upper-layer devices through the GE interface and can be connected to the existing network smoothly.
The Dynamic Bandwidth Allocation (DBA) mechanism enables all users to share the 1Gbps bandwidth reasonably, guaranteeing a reliable QoS.
System’s capacity: The modularized PON card of BDCOM P3310B can support four EPON systems simultaneously, up to 256 ONUs and the 1/64 coupling ratio.
Uplink interface: Its flexible design supports various MAN interface type groups. The optical ports or the electrical ports are selected according to network conditions.
৳ 48,000.00৳ 50,500.00 -
BDCOM P3608-2TE-1AC EPOM OLT 8 PORT
BDCOM P3608-2TE-1AC OLT
Maximum coupling ratio, 1:64
128G Backplane Bandwidth
Volume of the MAC table: 32K
Ports 8 EPON ports
8 GE ports (4 GE optical ports and 4 GE TX/SFP ports)
Optional 2 10G ports
EPON A 1Gbps transmission rate with downlink and uplink symmetry
Average emitting power of the PON port: +2dbm to +7dbm
Light reception sensitivity of the PON port: no less than -30dBm
Security: ONU authentication mechanism
Standard IEEE802.3ah
IEEE 802.1D, Spanning Tree
IEEE 802.1Q, VLAN
IEEE 802.1w, RSTP
IEEE 802.3ad, LACP
Ethernet – II
QoS Backpressure flow control (half duplex)
IEEE 802.3x flow control (full duplex)
IEEE 802.1p, CoS
WR, SP and FIFO
ONU-based uplink/downlink rate limit
DBA and SLA
VLAN Port-based VLAN
4K active VLANs
QinQ and flexible QinQ
IP routing Static route, RIPv1/v2, OSPF, etc.
Routing table: 12K
Multicast IGMP v1/2/3
IGMP Snooping
Reliability Unidirectional Link Detection (UDLD)
Optical path protection of EPON
Network security MAC limit
Port isolation
Storm control
Flow-based ACL
Transmission data encryption on the PON interface
Management CLI, SNMP and TELNET
TFTP and FTP
Chassis 442.5mm(W) x300mm(D) x 44mm(H)
Installation: A 19-inch cabinet
Weight: 2kg
Environment Working condition: 0℃-55℃; 10%-85% non-condensing
Storage condition: -40℃-80℃; 5%-95% non-condensing
Power Input voltage: AC90 to 264V，DC -36 to -72V
Dual power inputs, AC/DC power hybrid, power module’s hot swap
Over-current protection and over-voltage protectionOne year Warranty.
৳ 88,000.00৳ 89,500.00 -
C DATA ONU EPON
C DATA ONU
C-Data EPONN optical network unit design to meet the requirement of the broadband access network. It applies to FTTH/FTTO to provide the data and video service based on the EPON network.
1GE EPON ONU is based on a ZTE high-performance xPON access chip. The chip supposes three mode：EPON/P2P, comply with the GPON standard of g.984, g.983, have good xPON interoperability compatibility.
1GE EPON ONU provides one GE auto-adapting Ethernet ports. Its features high-performance forwarding capabilities to ensure an excellent experience with Internet and HD video services. Therefore, the FD600-521G-HZ630 provides a perfect terminal solution and future-oriented service supporting capabilities for FTTH deployment. It has good third-party compatibility to work with the third-party OLT, such as Huawei/ZTE/Fibroma/Alcatel·Lucent.
৳ 1,100.00৳ 1,200.00 -
C DATA ONU EPON
C DATA ONU
C-Data ONU EPONN optical network unit design to meet the requirement of the broadband access network. It applies to FTTH/FTTO to provide the data and video service based on the EPON network.
1GE EPON ONU is based on a ZTE high-performance xPON access chip. The chip supposes three mode：EPON/P2P, comply with the GPON standard of g.984, g.983, have good xPON interoperability compatibility.
1GE EPON ONU provides one GE auto-adapting Ethernet ports. Its features high-performance forwarding capabilities to ensure an excellent experience with Internet and HD video services. Therefore, the FD600-521G-HZ630 provides a perfect terminal solution and future-oriented service supporting capabilities for FTTH deployment. It has good third-party compatibility to work with the third-party OLT, such as Huawei/ZTE/Fibroma/Alcatel·Lucent.
৳ 1,100.00৳ 1,200.00 -

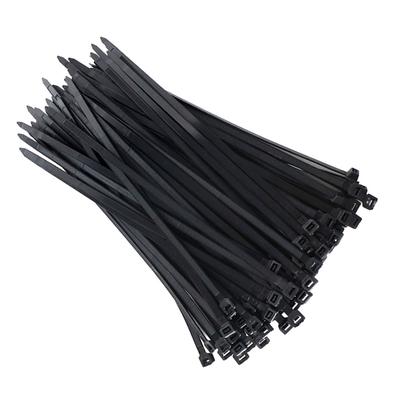

CABLE TIES 100 PCS
ELectric Cable Tie
Available in different Size
5*250MM
100 PCS৳ 100.00৳ 120.00 -

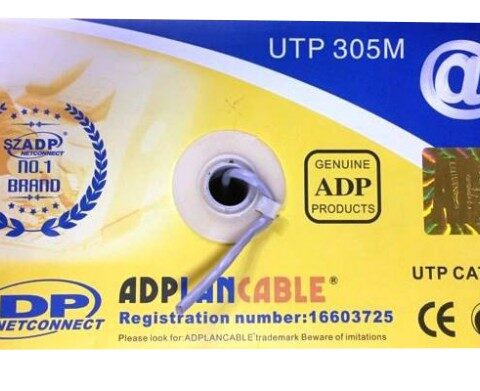

CAT 5E UTP SZ ADP LAN CABLE
ADP CAT5 UTP Cable
Conductor MaterialBare Copper/CCAG/CCA
Diameter 0.5 ± 0.01mm (24AWG)
Insulation(Dielectric) Material Color-coded PE (Polyethylene)
Thickness ≥ 0.18mm
Diameter0.91 ± 0.01mm
Twisted Pair N/A Pair 1 : Blue, White / BluePair 2 : Orange, White / Orange
Outer Jacket Material PVC
Thickness ≥ 0.55mm
Nominal O.D 5.20mm ± 0.10mm
Color Blue/white
Rated Temperature -20° to 7 5°৳ 2,800.00৳ 3,000.00
