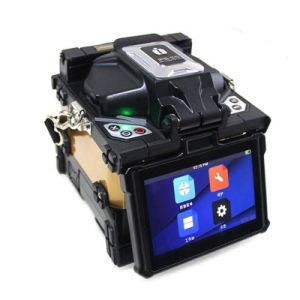

INNO IFS 55 Fusion Splicer

  • Brand: Inno
  • SKU: TP/Internet/INNO IFS 55/01

৳ 145,000.00৳ 150,000.00 (-3%)

Sold By: Kena Becha BD

In stock

INNO IFS 55 Fusion Splicer

INNO IFS 55 Fusion Splicer / Fiber Optic Splicing Machine is a Korean brand professional Splicing machine. Now available in Bangladesh.

Features:

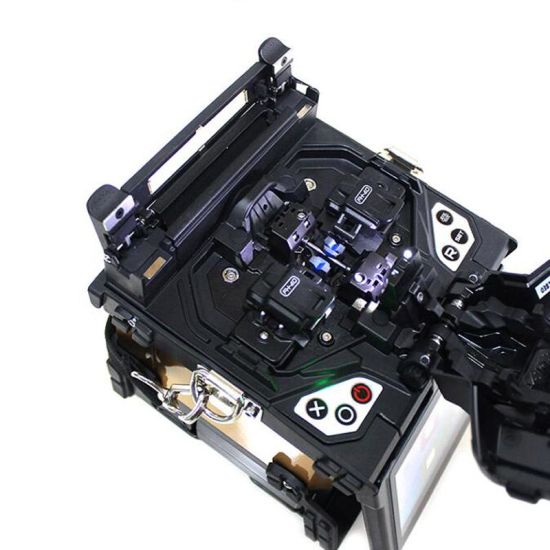

  • Automated and programmable wind protector
  • 6 seconds Splicing Time;14-second automated tube heater
  • Fully ruggedized for shock, dust, and moisture,
  • Li-Ion battery with 230 splices/shrinks per charge
  • 5 mm cleave length for splice on the connector or small package needs
  • Sheath clamp or fiber holder operation
  • On-board training and support videos
  • Internet software upgrades
  • Multi-function transit case with integrated workstation

Specification:

Model number Korea IFS-55 Fusion splicer/fiber splicing machine
Applicable Fibers Singlemode (G.652 & G.657), Multimode (G.651), DS (G.653), NZDS

(G.655),BIF/UBIF(G.657)
Cladding Diameter 80 μm to 150 μm
Coating Diameter 100 μm to 1,000 μm
Fiber Cleave Length 5 to 16 mm

10-60mm
Typical Average Splice Loss 0.02 dB with SM, 0.01 dB with MM, 0.04 dB with DS, 0.04 dB with

NZDS, measured by cut-back method relevant to ITU-T and IEC

standards
Splicing Time  SM FAST mode –  6seconds  Pyrocondensation Time-14seconds
Arc Calibration Method Automatic, real-time and by using results of the previous splice when in

AUTO mode, manual arc calibration function available
Splicing Modes 100 preset and user-programmable modes
Splice Loss Estimate Based upon dual-camera core alignment data
Storage of Splice Result Last 2,000 results to be stored in the internal memory
Fiber Display X or Y, or both X and Y simultaneously. Front or rear monitor display

options with automated image orientation
Magnification X or Y:300 X ;X and Y : 300 X

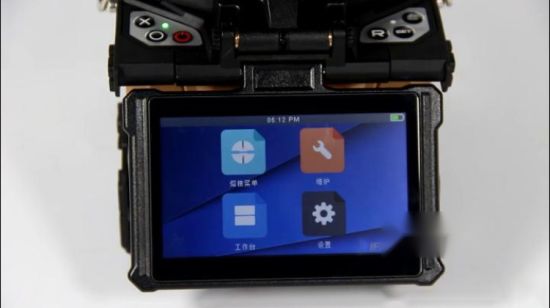

Viewing Method Dual cameras with 4.3 inch TFT color LCD monitor
Operating Condition 0 to 5,000 m above sea level, 0 to 95%RH and -10 to 50°C /Max wind velocity of 15M/S
Return loss >60dB
Pull 1.96-2.25N
Electrode life 3000-5000/One pair for Standby application
Weight 1.5KG
Machine Size 124W*123D*121H(mm)
Warranty 2 years warranty and lifespan technology support
Splicing cords 260 cords /per charge



Splicing Modes

  • 100 preset and user-programmable modes
  • Splice Loss Estimate
  • Based upon dual-camera core alignment data
  • Storage of Splice Result
  • The last 2,000 results to be stored in the internal memory
  • Fiber Display
  • X or Y, or both X and Y simultaneously. Front or rear monitor display
  • options with automated image orientation
  • Magnification
  • X or Y:300 X ;X and Y : 300 X
  • Viewing Method
  • Dual cameras with 4.3 inch TFT color LCD monitor
  • Operating Conditon
  • 0 to 5,000 m above sea level, 0 to 95%RH and -10 to 50°C /Max wind velocity of 15M/S
  • Return loss
  • >60dB
  • Pull
  • 1.96-2.25N
  • Electrode life
  • 3000-5000/One pair for Standby application
  • Weight
  • 1.5KG
  • Machine Size
  • 124W*123D*121H(mm)
  • Warranty
  • 2 years warranty and lifespan technology support
  • Splicing cords
  • 260 cords /per charge

Original Korea INNO IFS-55 FTTH Fiber fusion splicer Touch screen IFS-55 Fiber Optic Splicing Machine ARC Multi-function. INNO IFS 55 Fusion Splicer / Fiber Optic Splicing Machine is a Korean brand professional Splicing machine. Now available in Bangladesh.
